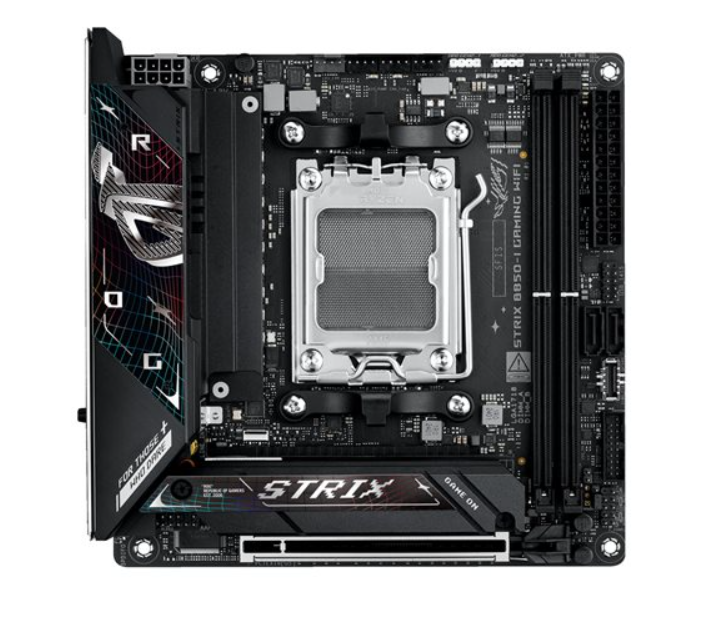

ASUS ROG Strix B850-I Gaming WiFi mini ITX AM5 motherboard with AMD B850, DDR5, Wi-Fi 7 and 2.5Gb Ethernet

Product Description

The ASUS ROG Strix B850-I Gaming WiFi, model 90MB1K30-M0EAY0, is a compact mini ITX motherboard built around the AMD B850 chipset and Socket AM5 platform. Designed for gaming, enthusiast and everyday computing systems where space is limited, it combines support for AMD Ryzen 7000, 8000 and 9000 Series processors with modern DDR5 memory, PCIe 5.0 expansion, high-speed storage and extensive wired and wireless connectivity. Its 17 cm by 17 cm dimensions make it suitable for compact PC configurations while retaining a broad range of performance, expansion and system-management features.

The AM5 processor socket accommodates one compatible AMD Ryzen processor from the Ryzen 7000, 8000 or 9000 Series. Power delivery is supported by a 10+2+1 phase design with 70A power stages, ASUS Extreme Engine Digi+, ASUS DIGI+ VRM, ASUS ProCool and 5K Black Metallic Capacitors. The board also incorporates ASUS TPU, or TurboV Processing Unit, alongside a collection of hardware technologies intended to support configuration and operation of a performance-focused system.

DDR5 SDRAM support provides a maximum memory capacity of 96 GB, with memory operating at a specified bus clock of 4200 MHz when overclocked. The memory implementation uses a dual-channel architecture and supports unbuffered memory, non-ECC operation and on-die ECC. AMD EXPO technology and ASUS Enhanced Memory Profile, or AEMP, are also supported, while ASUS OptiMem II and ASUS SafeDIMM form part of the motherboard's memory-related hardware feature set.

Expansion and storage options include one PCIe 5.0 x16 slot and two M.2 sockets designed for 2242, 2260 and 2280 M.2 Key M devices. PCIe 5.0 connectivity is provided for the two M.2 storage connections, with RAID 0, RAID 1 and RAID 10 support specified. Two SATA-600 connectors are also available for Serial ATA storage and likewise support RAID 0, RAID 1 and RAID 10. ASUS M.2 Q-Latch and M.2 Q-Slide features are provided to make working with compatible M.2 hardware more convenient, while PCIe Slot Q-Release forms part of the board's DIY-oriented design.

The motherboard provides a wide selection of external and internal connections. Its interfaces include HDMI, USB-C 3.2 Gen 2 with DisplayPort functionality, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 and USB 2.0 connectivity. Internal headers add further USB-C 3.2 Gen 2, USB 3.2 Gen 1 and USB 2.0 connections as well as an internal audio header. This combination allows the compact board to accommodate a variety of peripherals, case connections and compatible USB devices.

Network connectivity covers both wired and wireless use. The integrated LAN interface supports 2.5 Gigabit Ethernet, while wireless networking supports the 802.11a/b/g/n/ac/ax/be standards, including Wi-Fi 7. Bluetooth 5.4 is also integrated. An ASUS Wi-Fi Q-antenna is supplied with the motherboard, and two aerial connections are available on the board for wireless connectivity.

For systems using supported processor-provided graphics, onboard display connectivity is available and requires a suitable CPU. HDMI is included alongside a USB-C 3.2 Gen 2 interface with DisplayPort capability, with DisplayPort 1.4 listed among the motherboard's supported standards. These display connections complement the dedicated PCIe 5.0 x16 expansion slot available for compatible expansion hardware.

Audio is handled by the Realtek ALC4080 codec and provides eight-channel HD Audio. The audio implementation supports High Definition Audio and DTS Sound Unbound and incorporates SupremeFX Shielding technology together with a Savitech SV3H712 amplifier. Audio functionality also includes jack retasking and audio jack detection. Physical audio connections comprise microphone input, line output, line input and SPDIF output, providing both analogue and digital audio connection options.

ASUS has incorporated a range of setup and DIY features into the ROG Strix B850-I Gaming WiFi. ASUS Q-Design technologies include M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM and Q-Slot, while ASUS EZ DIY contributes additional installation and maintenance functionality. A pre-mounted I/O shield is fitted, and the motherboard includes a BIOS FlashBack button and BIOS FlashBack LED. ASUS Aura Sync is also supported for compatible lighting customisation within a coordinated system.

The motherboard uses an AMI BIOS with UEFI BIOS functionality and ASUS EZ Flash 3. CrashFree BIOS 3 and BIOS FlashBack provide additional BIOS-related functionality, while system wake capabilities include Wake on LAN and wake on PME. A Water Pump Header is also included among the board's hardware features for compatible system configurations.

A broad software package accompanies the motherboard. Included applications and utilities comprise Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, ROG CPU-Z and HWiNFO. WinRAR is included, together with a free trial of Adobe Creative Cloud and a 60-day trial of AIDA64 Extreme.

The supplied hardware and accessories support installation and system assembly. The package contains the ASUS ROG Strix B850-I Gaming WiFi motherboard, two Serial ATA cables, an ASUS Wi-Fi Q-antenna, cable ties, two M.2 rubber packages, an M.2 screw package, an M.2 backplate rubber package, an M.2 backplate Q-Latch and an M.2 Q-Slide. A ROG key chain, TUF GAMING sticker and ROG Strix sticker are also included.

The ROG Strix B850-I Gaming WiFi complies with FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS and UKCA requirements, as well as the DisplayPort 1.4 standard. Bringing its AM5 processor platform, DDR5 memory support, PCIe 5.0 expansion and storage, 2.5 Gigabit Ethernet, Wi-Fi 7, Bluetooth 5.4, eight-channel Realtek audio and ASUS installation technologies into a mini ITX format, it provides a feature-rich foundation for a compact AMD Ryzen-based computer.

Specifications

• Product name: ASUS ROG Strix B850-I Gaming WiFi
• Model / manufacturer part number: 90MB1K30-M0EAY0
• Manufacturer: ASUS
• Series: ROG Strix
• Product category: motherboard
• Form factor: mini ITX
• Dimensions: 17 cm width x 17 cm depth
• Chipset: AMD B850
• Processor socket: 1 x Socket AM5
• Maximum processor quantity: 1
• Compatible processors: AMD Ryzen 7000, 8000 and 9000 Series
• Onboard graphics support: supported with a compatible CPU; CPU required
• Maximum RAM capacity: 96 GB
• Memory technology: DDR5 SDRAM
• Memory bus clock: 4200 MHz (O.C.)
• Memory architecture: dual channel
• Memory integrity support: non-ECC and on-die ECC
• Memory type: unbuffered
• Memory features: AMD EXPO technology and ASUS Enhanced Memory Profile (AEMP)
• Main specification memory configuration: 2 DIMM slots
• Expansion slot specification: 1 x CPU, 4 x 288-pin DIMM, 1 x PCIe 5.0 x16 and 2 x M.2 sockets for 2242/2260/2280 M.2 Key M devices
• Storage ports: 2 x SATA-600 and 2 x M.2
• SATA storage interfaces: 2 x 7-pin Serial ATA SATA-600 connectors
• SATA RAID support: RAID 0, RAID 1 and RAID 10
• M.2 storage interfaces: 2 x PCIe 5.0 M.2 connectors
• M.2 RAID support: RAID 0, RAID 1 and RAID 10
• Main specification USB connectivity: 1 x USB-C 3.2 Gen 2x2, 1 x USB-C 3.2 Gen 2, 4 x USB 3.2 Gen 1 and 2 x USB 2.0, plus 1 x USB-C 3.2 Gen 2, 2 x USB 3.2 Gen 1 and 3 x USB 2.0 via headers
• External interfaces: 1 x HDMI, 1 x USB-C 3.2 Gen 2/DisplayPort, 1 x USB-C 3.2 Gen 2x2, 4 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x 2.5 Gigabit Ethernet LAN, 1 x SPDIF output, 1 x microphone mini-jack, 1 x audio line-out mini-jack, 2 x aerial connections and 1 x audio line-in mini-jack
• Internal interfaces: 3 x USB 2.0 headers, 2 x USB 3.2 Gen 1 headers, 1 x USB-C 3.2 Gen 2 header and 1 x audio header
• Power connectors: 1 x 24-pin main power connector and 1 x 8-pin ATX12V connector
• Network interface: 2.5 Gigabit Ethernet
• Wireless networking standards: IEEE 802.11a/b/g/n/ac/ax/be
• Wi-Fi: Wi-Fi 7
• Bluetooth: Bluetooth 5.4
• Audio type: HD Audio, 8-channel
• Audio codec: Realtek ALC4080
• Audio standards: High Definition Audio and DTS Sound Unbound
• BIOS type: AMI
• BIOS features: UEFI BIOS and ASUS EZ Flash 3
• Sleep and wake features: Wake on LAN (WOL) and wake on PME
• Hardware features: ASUS OptiMem II, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Water Pump Header, jack retasking, audio jack detect technology, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 10+2+1 phase power design, 70A power stage, DIY Friendly Design and ASUS Enhanced Memory Profile (AEMP)
• Included accessories: ASUS Wi-Fi Q-antenna, 2 x M.2 rubber packages, TUF GAMING sticker, M.2 screw package, cable ties, M.2 backplate Q-Latch, M.2 Q-Slide, ROG key chain, ROG Strix sticker and M.2 backplate rubber package
• Included cables: 2 x Serial ATA cables
• Included software: Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR, Adobe Creative Cloud free trial, ROG CPU-Z, AIDA64 Extreme 60-day trial and HWiNFO
• Compliance standards: FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA and DisplayPort 1.4
• Box contents: ASUS ROG Strix B850-I Gaming WiFi motherboard, 2 x Serial ATA cables, cable ties, ROG key chain, 2 x M.2 rubber packages, M.2 screw package, M.2 backplate rubber package, M.2 backplate Q-Latch, TUF GAMING sticker, ASUS Wi-Fi Q-antenna, M.2 Q-Slide and ROG Strix sticker
