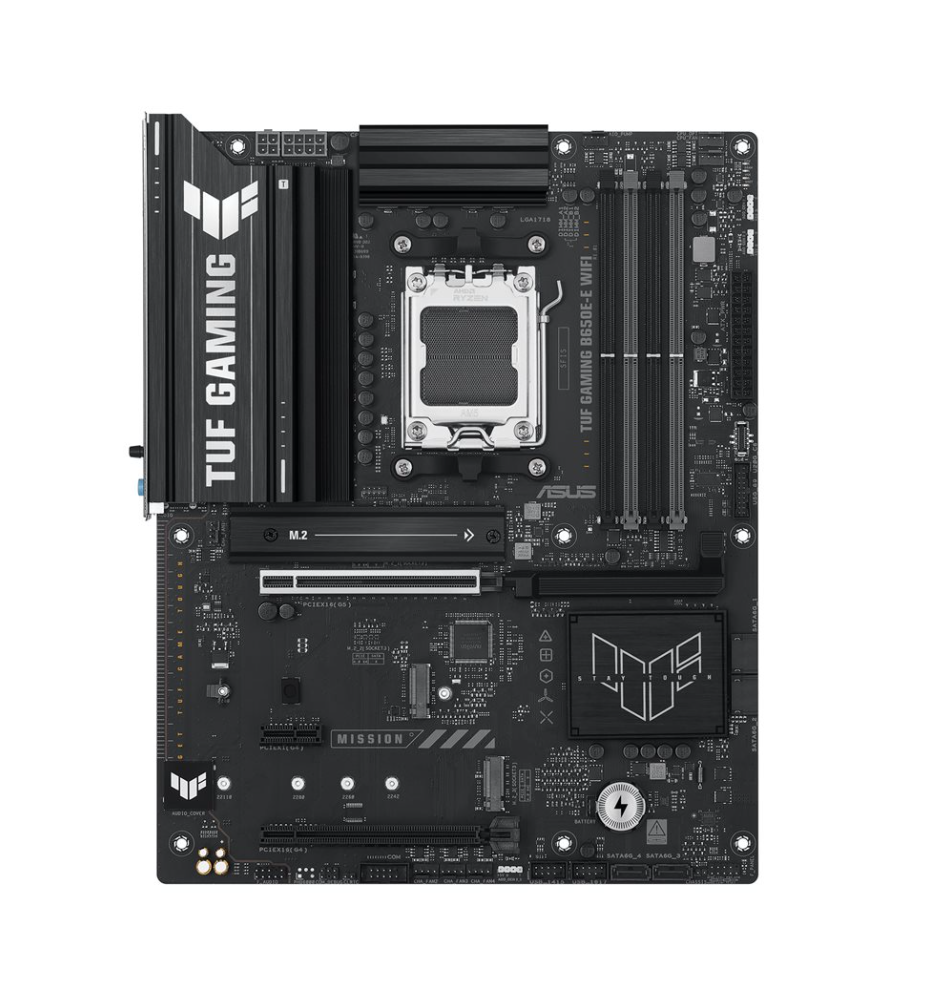

ASUS TUF GAMING B650E-E WIFI ATX AM5 motherboard with AMD B650, DDR5, Wi-Fi 6E and 2.5Gb Ethernet

Product Description

The ASUS TUF GAMING B650E-E WIFI, model 90MB1LT0-M0EAY0, is an ATX motherboard built around the AMD B650 chipset and Socket AM5 platform. Designed for systems using compatible AMD Ryzen 7000, 8000 or 9000 Series processors, it combines DDR5 memory support, PCIe expansion, multiple M.2 and SATA storage connections, integrated wired and wireless networking, extensive USB connectivity and 8-channel HD Audio. Display connectivity is also provided for supported processors with onboard graphics capability, with both HDMI and DisplayPort interfaces available.

Memory support is provided through four 288-pin DIMM slots with a maximum capacity of 256 GB of DDR5 SDRAM. The board uses a dual-channel memory architecture and supports a 4000 MHz overclocked memory bus clock. Its memory capabilities include unbuffered modules, non-ECC, on-die ECC and ECC integrity options, together with AMD EXPO technology and ASUS Enhanced Memory Profile technology. These memory features provide the platform required for configuring compatible high-performance DDR5 memory while retaining support for the memory technologies specified for the motherboard.

Power delivery is handled by an 8+2+1 phase design alongside ASUS DIGI+ VRM technology. The motherboard connects to the power supply through a 24-pin main power connector as well as 4-pin and 8-pin ATX12V connections. Thermal management around key components includes a dedicated VRM heatsink design and an M.2 heatsink, helping manage operating temperatures around the power-delivery and M.2 storage areas during demanding system workloads.

Storage expansion covers both SATA and M.2 devices. Four SATA-600 connectors are provided, with AMD RAID Xpert2 technology and support for RAID 0, RAID 1, RAID 10 and RAID 5 configurations. Three M.2 sockets are available in total. Two accommodate 2280 M.2 devices, while another supports the 22110 M.2 Key M format. Storage connectivity includes one PCIe 5.0 M.2 connection and two PCIe 4.0 M.2 connections, giving builders a combination of current PCIe storage interfaces and conventional SATA connectivity within the same system.

The expansion layout includes two PCIe 4.0 x16 slots and one PCIe 4.0 x1 slot in addition to the four DIMM slots and three M.2 sockets. ASUS also incorporates hardware features intended to support system assembly and component protection, including ASUS SafeSlot, Q-DIMM, Q-Slot, Q-LED Core and ASUS EZ DIY. ASUS 5X Protection III, LANGuard, overvoltage protection and a stainless-steel rear I/O are also part of the motherboard's hardware feature set.

External device connectivity includes a broad selection of USB standards. The rear interface configuration provides one USB-C 3.2 Gen 2 port, one USB 3.2 Gen 2 port, three USB 3.2 Gen 1 ports and three USB 2.0 ports. Additional case and system connectivity can be provided through internal headers, comprising one USB-C 3.2 Gen 2x2 header, two USB 3.2 Gen 1 headers and four USB 2.0 headers. Internal serial and audio headers are also included. This combination gives a system builder access to both USB-C and USB Type-A connectivity across multiple USB generations while also supporting additional connections through a compatible chassis.

Network connectivity is available through both wired and wireless interfaces. The integrated Ethernet connection operates at 2.5 Gigabit speeds, while wireless networking supports the 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac and 802.11ax standards, with 802.11ax providing Wi-Fi 6E capability. Bluetooth 5.3 is integrated for compatible wireless peripherals and devices. Two aerial connections are provided on the motherboard, and an ASUS Wi-Fi Q-antenna is supplied in the package.

Audio is handled by an integrated 8-channel HD Audio system compliant with the High Definition Audio standard. The rear connections include audio line-out, microphone and audio line-in mini-jacks, while an internal audio header is available for compatible chassis connections. DTS Audio Processing is also among the supplied software.

The motherboard uses an AMI BIOS and supports Wake on LAN and wake on PME functionality. BIOS-related and installation features include a BIOS FlashBack button and BIOS FlashBack LED, while ASUS Q-Antenna, Q-DIMM, Q-LED Core and Q-Slot features form part of the wider ASUS installation and system-management feature set. ASUS Fan Xpert 4 is included in the supplied software collection for fan-related system functionality.

ASUS supplies the motherboard with Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS TurboV EVO Utility, PC Cleaner, ASUS DriverHub, ASUS TUF GAMING CPU-Z and DTS Audio Processing. The software package also includes a free trial of Adobe Creative Cloud, a 60-day trial of Norton 360 for Gamers and a 40-day WinRAR trial. Physical accessories consist of two Serial ATA cables, one M.2 rubber package, two M.2 SSD screw packages, a TUF GAMING sticker and an ASUS Wi-Fi Q-antenna.

As a full-size ATX motherboard measuring 30.5 cm wide and 24.4 cm deep, the ASUS TUF GAMING B650E-E WIFI brings together the AM5 processor platform, AMD B650 chipset, DDR5 memory, PCIe 5.0 and PCIe 4.0 M.2 storage connectivity, SATA RAID support, Wi-Fi 6E, Bluetooth 5.3, 2.5 Gigabit Ethernet, multi-generation USB connectivity and 8-channel HD Audio in a single motherboard platform for compatible gaming and professional PC configurations.

Specifications

• Product name: ASUS TUF GAMING B650E-E WIFI
• Model: 90MB1LT0-M0EAY0
• Manufacturer: ASUS
• Series: TUF GAMING
• Product category: Motherboard
• Form factor: ATX
• Chipset: AMD B650
• Processor socket: 1 x Socket AM5
• Maximum processor quantity: 1
• Compatible processors: AMD Ryzen 7000 Series, Ryzen 8000 Series and Ryzen 9000 Series
• Onboard graphics support: Supported through a compatible CPU; CPU required
• Maximum memory capacity: 256 GB
• Memory slots: 4 x 288-pin DIMM
• Memory technology: DDR5 SDRAM
• Memory bus clock: 4000 MHz (O.C.)
• Memory architecture: Dual-channel
• Memory integrity support: Non-ECC, on-die ECC and ECC
• Registered/buffered memory support: Unbuffered
• Memory technology features: AMD EXPO technology and ASUS Enhanced Memory Profile (AEMP)
• Expansion slots: 2 x PCIe 4.0 x16
• Expansion slots: 1 x PCIe 4.0 x1
• M.2 sockets: 2 x 2280 M.2 slots
• M.2 sockets: 1 x 22110 M.2 Key M slot
• Total M.2 sockets: 3
• SATA storage interfaces: 4 x SATA-600 using 7-pin Serial ATA connectors
• SATA RAID support: RAID 0, RAID 1, RAID 10 and RAID 5
• M.2 PCIe storage interfaces: 1 x PCIe 5.0 M.2 and 2 x PCIe 4.0 M.2
• RAID technology: AMD RAID Xpert2 Technology
• Rear display interfaces: 1 x HDMI and 1 x DisplayPort
• Rear USB-C interfaces: 1 x USB-C 3.2 Gen 2
• Rear USB interfaces: 1 x USB 3.2 Gen 2
• Rear USB interfaces: 3 x USB 3.2 Gen 1
• Rear USB interfaces: 3 x USB 2.0
• Internal USB-C connectivity: 1 x USB-C 3.2 Gen 2x2 header
• Internal USB connectivity: 2 x USB 3.2 Gen 1 headers
• Internal USB connectivity: 4 x USB 2.0 headers
• Other internal interfaces: 1 x serial header and 1 x audio header
• LAN interface: 1 x 2.5 Gigabit Ethernet port
• Wireless network standards: IEEE 802.11a/b/g/n/ac/ax
• Wi-Fi standard: Wi-Fi 6E
• Bluetooth: Bluetooth 5.3
• Wireless aerial connections: 2
• Audio type: HD Audio, 8-channel
• Audio standard compliance: High Definition Audio
• Rear audio interfaces: 1 x audio line-out mini-jack, 1 x microphone mini-jack and 1 x audio line-in mini-jack
• Power connectors: 1 x 24-pin main power connector, 1 x 4-pin ATX12V connector and 1 x 8-pin ATX12V connector
• Power design: 8+2+1 phase power design
• Power management technology: ASUS DIGI+ VRM
• Cooling features: VRM heatsink design and M.2 heatsink
• BIOS type: AMI
• Sleep/wake functions: Wake on LAN (WOL) and wake on PME
• Hardware features: ASUS 5X Protection III, LANGuard, ASUS DIGI+ VRM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, overvoltage protection, Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot, ASUS EZ DIY, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink design, M.2 heatsink, 8+2+1 Phase Power Design and ASUS Enhanced Memory Profile (AEMP)
• Included accessories: TUF GAMING sticker, 1 x M.2 rubber package, ASUS Wi-Fi Q-antenna and 2 x M.2 SSD screw packages
• Included cables: 2 x Serial ATA cables
• Included software: Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS TurboV EVO Utility, PC Cleaner, ASUS DriverHub, ASUS TUF GAMING CPU-Z and DTS Audio Processing
• Trial software: Adobe Creative Cloud free trial, Norton 360 for Gamers 60-day trial and WinRAR 40-day trial
• Width: 30.5 cm
• Depth: 24.4 cm
• Box contents: ASUS TUF GAMING B650E-E WIFI motherboard, 2 x Serial ATA cables, 1 x M.2 rubber package, 2 x M.2 SSD screw packages, TUF GAMING sticker, ASUS Wi-Fi Q-antenna and software
